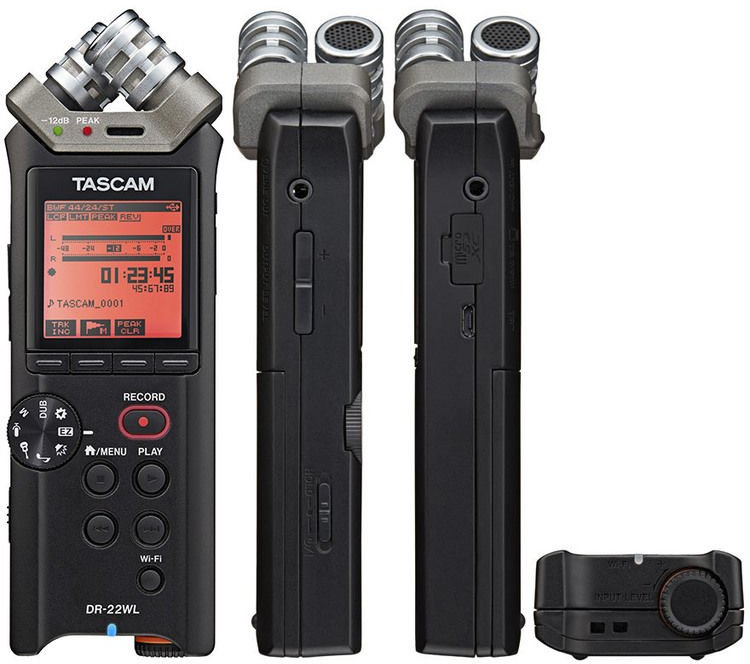

Tascam DR-22WL
|
158.00 €
|
Found cheaper? Suggest a price
Warranty: 24 month
Manufacturer: Tascam
Nuoroda į gamintojo puslapį
Prekyboje: šiuo metu neturime. Prekės gavimas nuo 1 d.d.Rodomi konkretūs prekių likučiai esantys Vilniaus ir/arba Kauno salonuose. Informacija nėra atnaujinama tiesiogiai. Turimos prekės gali būti neseniai parduotos arba rezervuotos, o jų likutis vis dar rodomas, todėl tikslaus prekių kiekio visuomet prašome teirautis vadybininkų telefonu ar kitais nurodytais kontaktais.
| Content: |  |
 |
Add to Cart
InquireSpecifications
| General | ||
|---|---|---|
| Recording media | microSD card (64 MB − 2 GB) microSDHC card (4−32 GB) microSDXC card (64−128 GB) |
|
| Recording/playback formats | BWF: 44.1k/48k/96kHz, 16/24 bit WAV: 44.1k/48k/96kHz, 16/24 bit MP3: 44.1k/48 kHz, 32/64/96/128/192/256/320 Kbit/s |
|
| Number of channels | 2 channels (stereo) | |
| Analogue audio inputs and outputs | ||
|---|---|---|
| MIC/EXT IN jack (can provide plug-in power) | 3.5-mm stereo mini jack | |
| Input impedance | 25 kΩ | |
| Reference input level | −20 dBV | |
| Maximum input level | −4 dBV | |
| Phones/LINE OUT jack | 3.5-mm stereo mini jack | |
| Output impedance | 12 Ω | |
| Reference output level | −14 dBV (at 10 kΩ load) | |
| Maximum output level | +2 dBV (at 10 kΩ load) | |
| Maximum output | 20 mW + 20 mW (at 32 Ω load) | |
| Built-in speaker | 0.3 W (mono) | |
| Control inputs/outputs | ||
|---|---|---|
| USB port | Mini-B type | |
| Format | USB 2.0 HIGH SPEED mass storage class | |
| Audio performance | ||
|---|---|---|
| Frequency response (EXT IN to LINE OUT) | 20 Hz – 20 kHz +1/–3 dB (44.1 kHz, JEITA) 20 Hz – 22 kHz +1/–3 dB (48 kHz, JEITA) 20 Hz – 40kHz +1/-3 dB (96 kHz, JEITA) |
|
| Distortion (EXT IN to LINE OUT) | 0.05% or less (44.1k/48k/96kHz, JEITA) | |
| S/N ratio | 92dB or above (44.1k/48k/96kHz, JEITA) | |
| Note: Measurements based on JEITA CP-2150 | ||
| Requirements for connected computers | ||
|---|---|---|
| Windows | Pentium 300 MHz or more 128MB or more memory USB port (USB 2.0 is recommended) |
|
| Mac | Power PC, iMac, G3, or G4 with 266 MHz or more 64 MB or more memory USB port (USB 2.0 is recommended) |
|
| Recommended USB host controller | Intel chip set | |
| Supported operating systems | Windows XP, Windows Vista, Windows 7, Windows 8 (including 8.1) Mac OS X 10.2 or later |
|
| Wi-Fi standard | IEEE 802.11b/g/n (2.4GHz only) | |
| Wireless communication mode | Simple access point (Limited AP) | |
| Wi-Fi security | WPA2-PSK (WPS2.0 compatible) | |
| Power supply and other specifications | ||
|---|---|---|
| Power supply | 2 AA batteries (alkaline or NiMH) USB bus power from a computer Dedicated AC adapter (TASCAM PS-P515U sold separately) |
|
| Power consumption | 1.7 W (maximum) | |
| Dimensions (W × H × D) | 52 mm × 155 mm × 37 mm | |
| Weight | 170 g (with batteries) 123 g (without batteries) |
|
| Operating temperature | 0–40 °C | |
| Approximate battery operation time (continuous operation) | ||
|---|---|---|
| Alkaline batteries (EVOLTA) | ||
| WAV, 96kHz, 24bit | About 9 hours (Recording with built-in microphone) |
|
| WAV, 44.1kHz, 16bit | About 17.5 hours (Recording with built-in microphone) |
|
| MP3 format, 44.1kHz, 128kbps | About 12 hours (Recording with built-in microphone) |
|
| MP3 format, 48kHz, 320kbps | About 11 hours (Recording with built-in microphone) |
|
| WAV, 96kHz, 24bit | About 11 hours (Playback using headphones) |
|
| WAV, 44.1kHz, 16bit | About 13 hours (Playback using headphones) |
|
| MP3 format, 44.1kHz, 128kbps | About 11 hours (Playback using headphones) |
|
| MP3 format, 48kHz, 320kbps | About 11 hours (Playback using headphones) |
|
| Using NiMH batteries (eneloop) | ||
| WAV, 96kHz, 24bit | About 9 hours (Recording with built-in microphone) |
|
| WAV, 44.1kHz, 16bit | About 13.5 hours (Recording with built-in microphone) |
|
| MP3 format, 44.1kHz, 128kbps | About 12 hours (Recording with built-in microphone) |
|
| MP3 format, 48kHz, 320kbps | About 11 hours (Recording with built-in microphone) |
|
| WAV, 96kHz, 24bit | About 12 hours (Playback using headphones) |
|
| WAV, 44.1kHz, 16bit | About 13.5 hours (Playback using headphones) |
|
| MP3 format, 44.1kHz, 128kbps | About 10 hours (Playback using headphones) |
|
| MP3 format, 48kHz, 320kbps | About 10 hours (Playback using headphones) |
|
